Wallmount Series
6W Series
12W Series
18W Series
24W Series
36W Series
60W Series
72W Series
| Series | Rated power (W) | Input voltage (V) | Output current (A) | Output voltage (V) | Isolation voltage (V) | Certificate | Dimension | Spec |
|---|---|---|---|---|---|---|---|---|
|

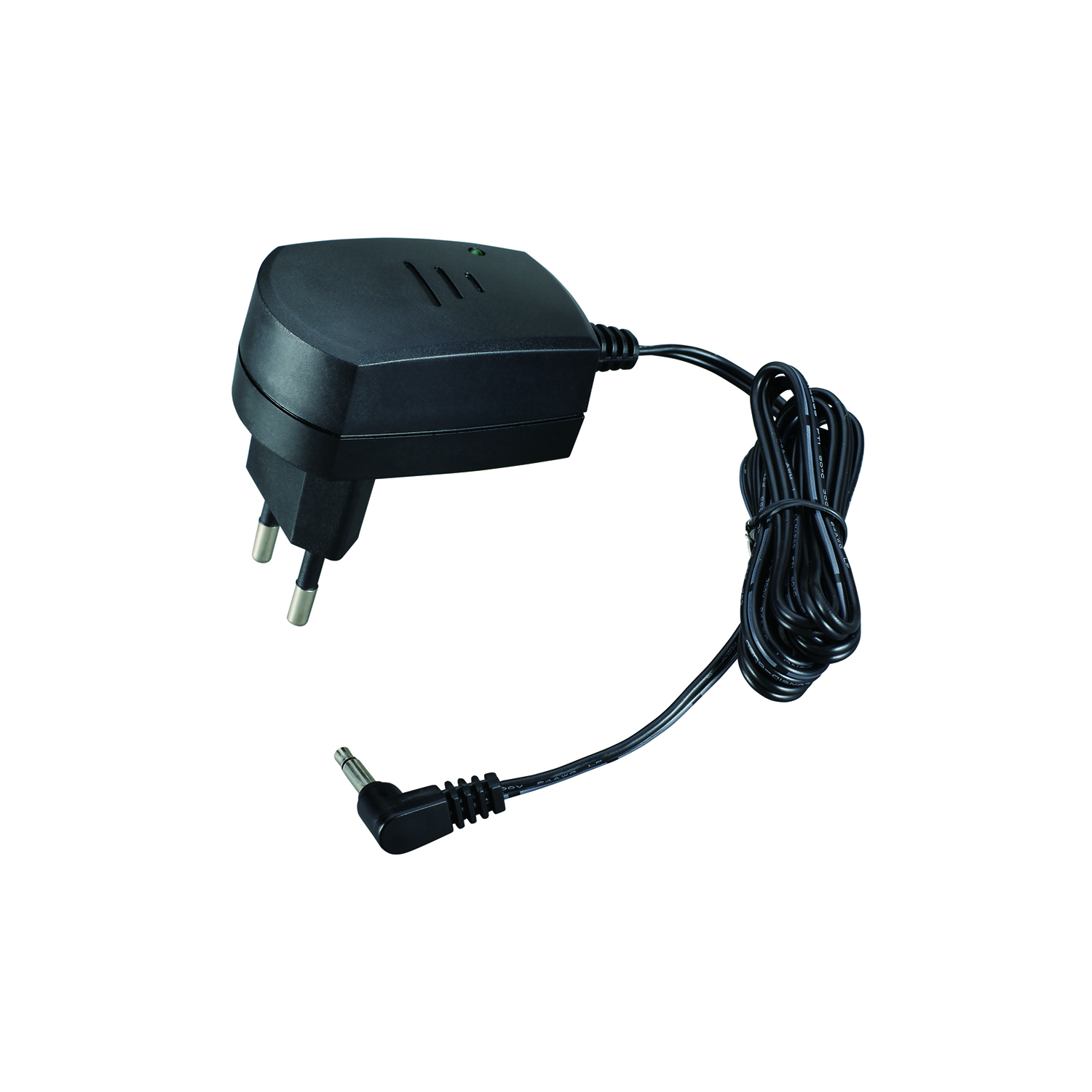

6W Series
|
6W | 100-240VAC | 0.1A-2A | 5-36VDC | 3000 | CE,RoHS,REACH | - | - |
|

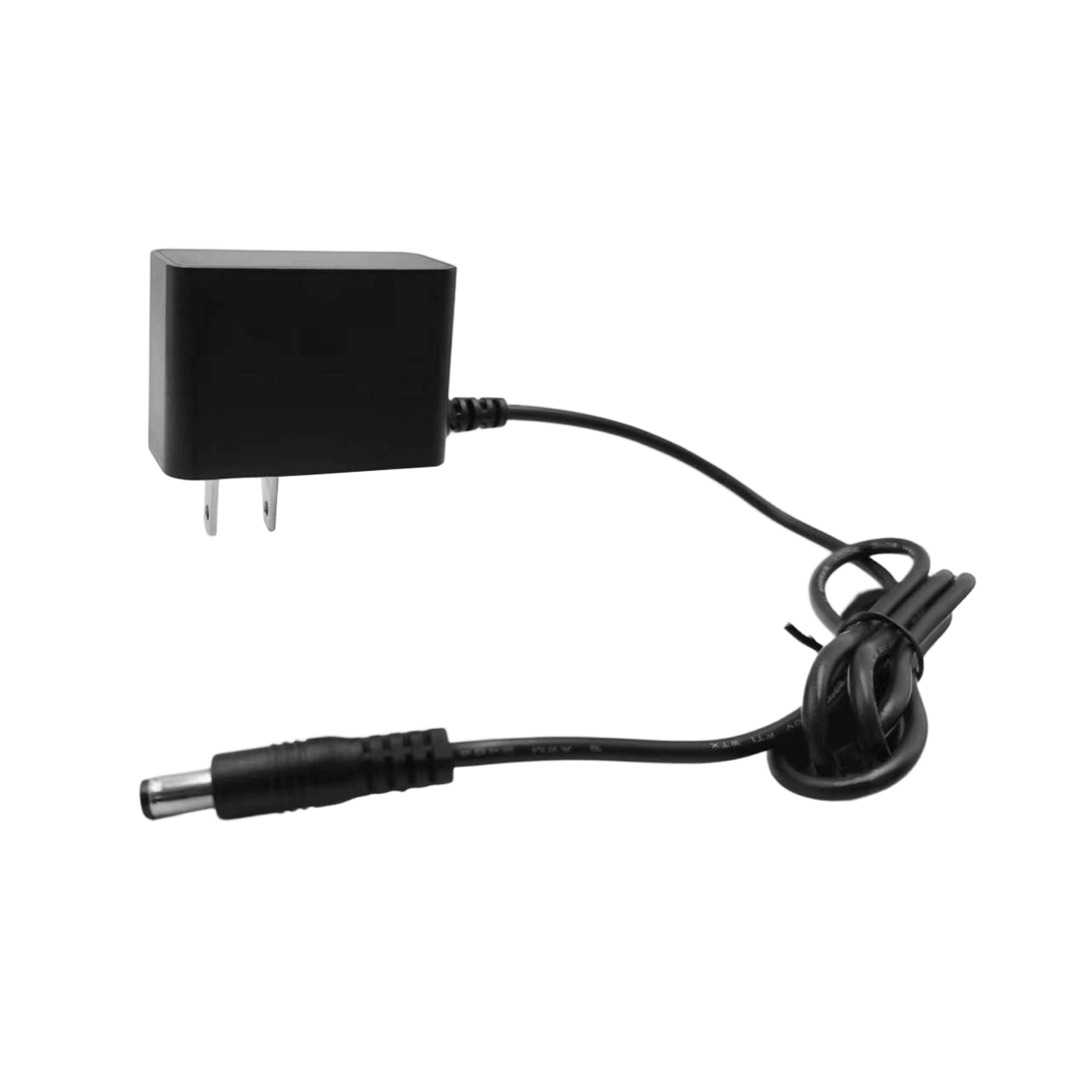

12W Series
|
12W | 100-240VAC | 0.1A-2.4A | 5-48VDC | 3000VAC | CE ,CB,SAA,ETL, ROHS REACH | - | - |
|

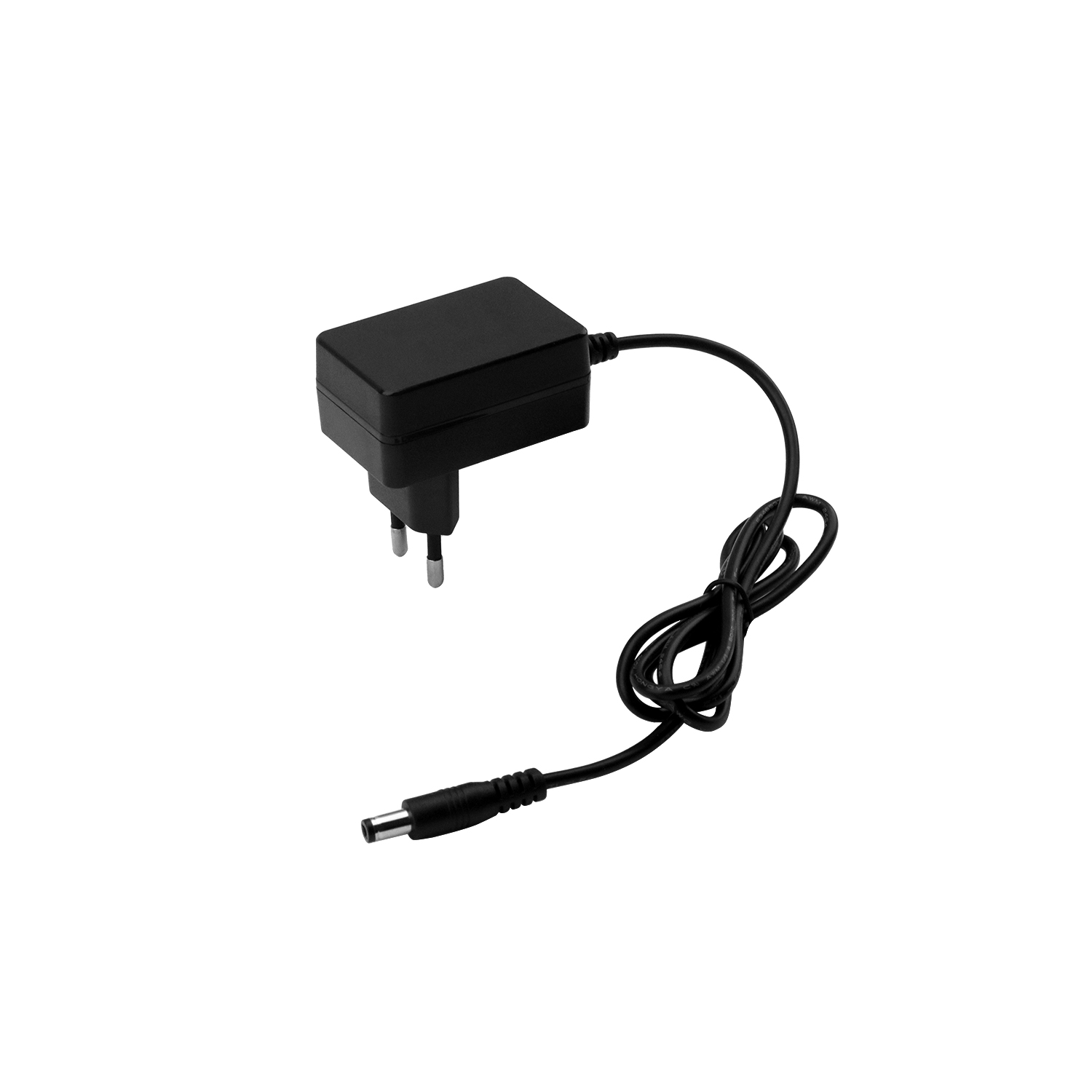

18W Series
|
18W | 100-240VAC | 0.1A-3A | 5-36VDC | 3000VAC | CE ,CB,SAA,UL, ROHS REACH | - | - |
|
24W Series
|
24W | 100-240VAC | 0.1A-3A | 5-48VDC | 3000VAC | CE ,CB,SAA,UL, ROHS REACH | - | - |
|

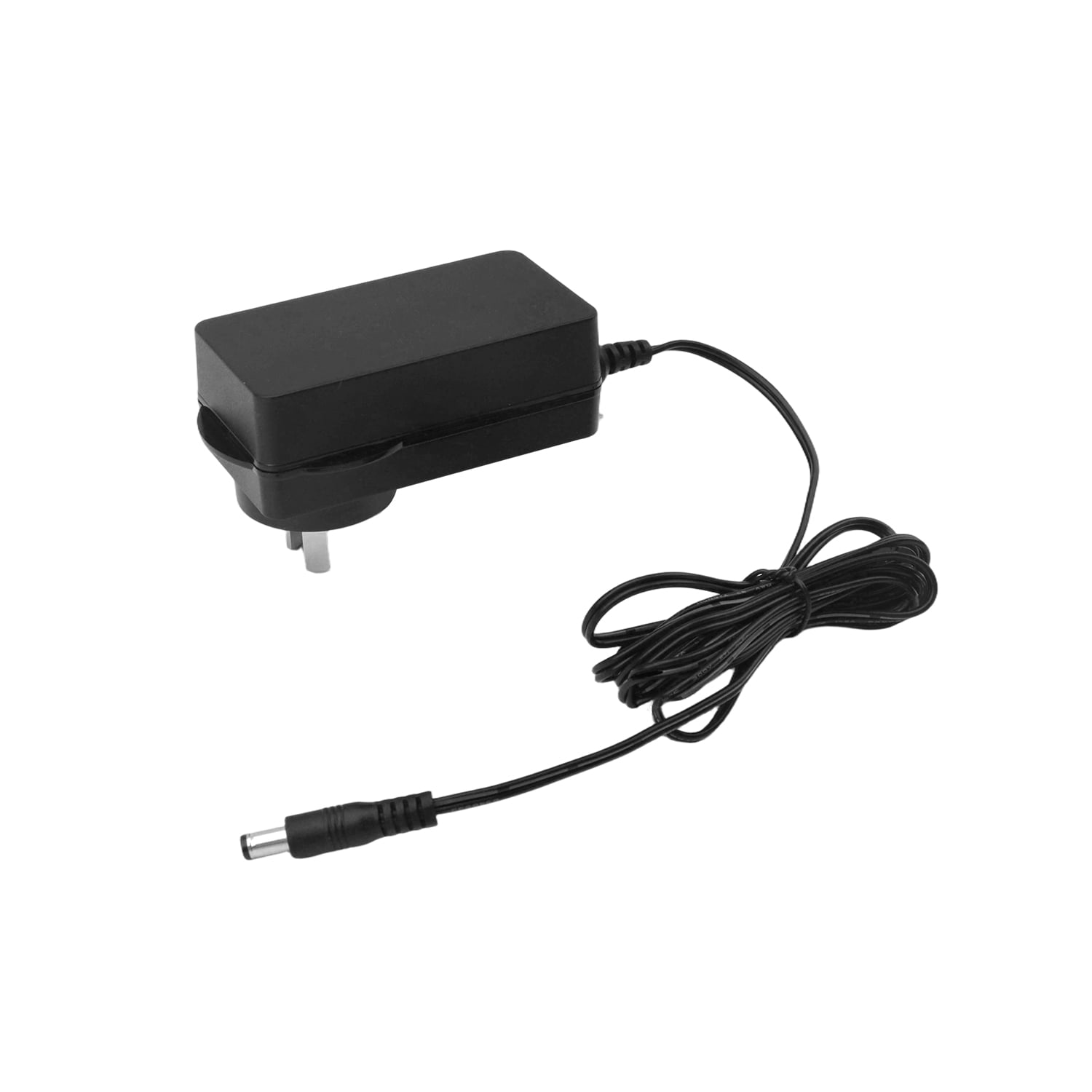

36W Series
|
36W | 100-240VAC | 0.1A-5A | 5-48VDC | 3000VAC | CE ,CB,SAA,UL, ROHS REACH | - | - |
|

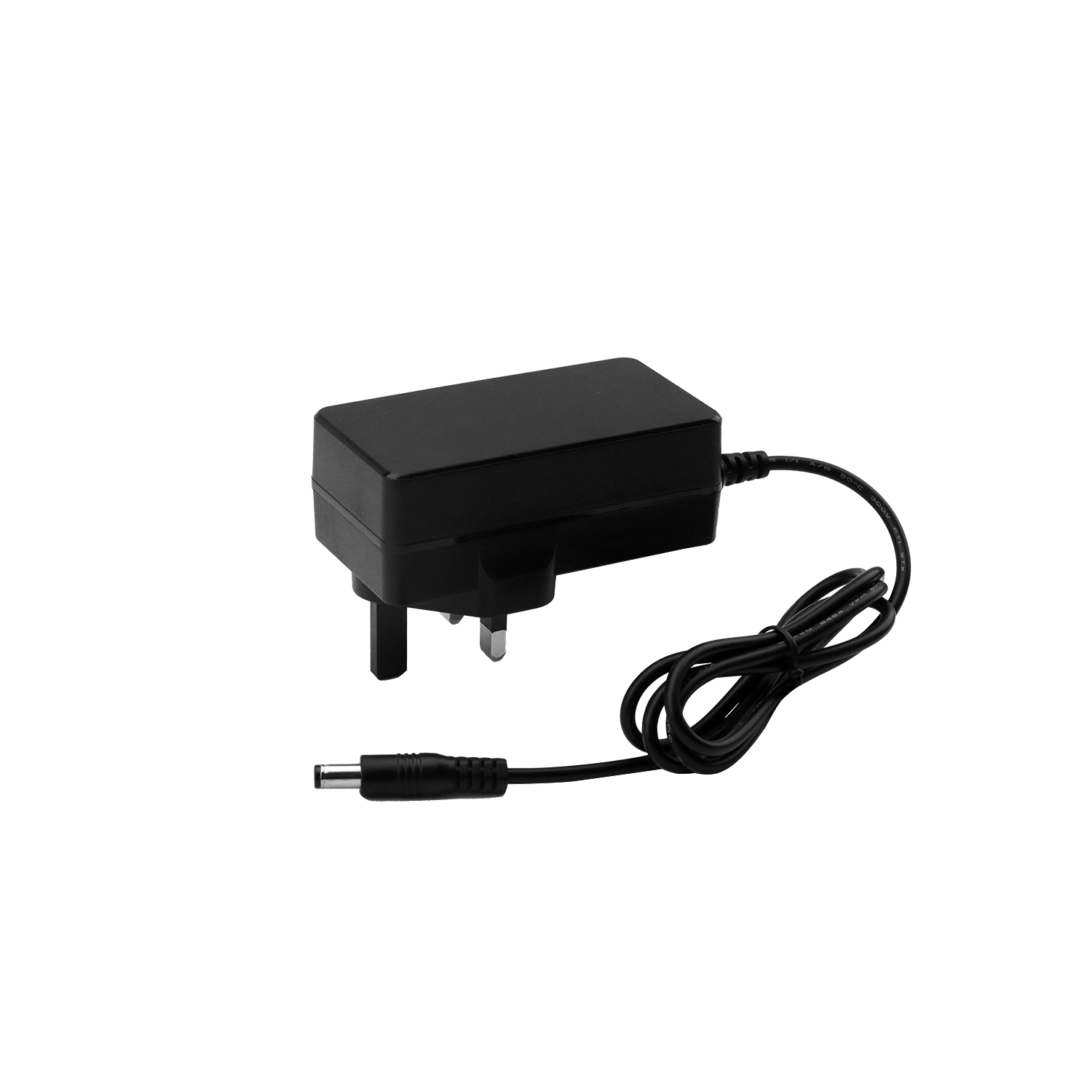

60W Series
|
60W | 100-240VAC | 0.1A-5A | 9-48VDC | 3000VAC | CE ,CB,SAA,UL, ROHS REACH | - | - |
|
72W Series
|
72W | 100-240VAC | 0.1A-6A | 5-48VDC | 3000VAC | CE ,CB,SAA,ETL, ROHS REACH | - | - |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
