MCS Series

MCS5

MCS10

MCS15

MCS20

MCS30

MCS45

MCS60

MCS90

Series	Rated power (W)	Input voltage (V)	Output current (A)	Output voltage (V)	Isolation voltage (V)	Certificate	Dimension	Spec
MCS5	5W	85-305VAC	0.23-1.25A	3.3-24VDC	3000VAC	CE	46.08x25.78x21.7mm	-
MCS5-3.3	4.125W	85-305VAC	1.25A	3.3VDC	3000VAC	CE	99X97X30mm	-

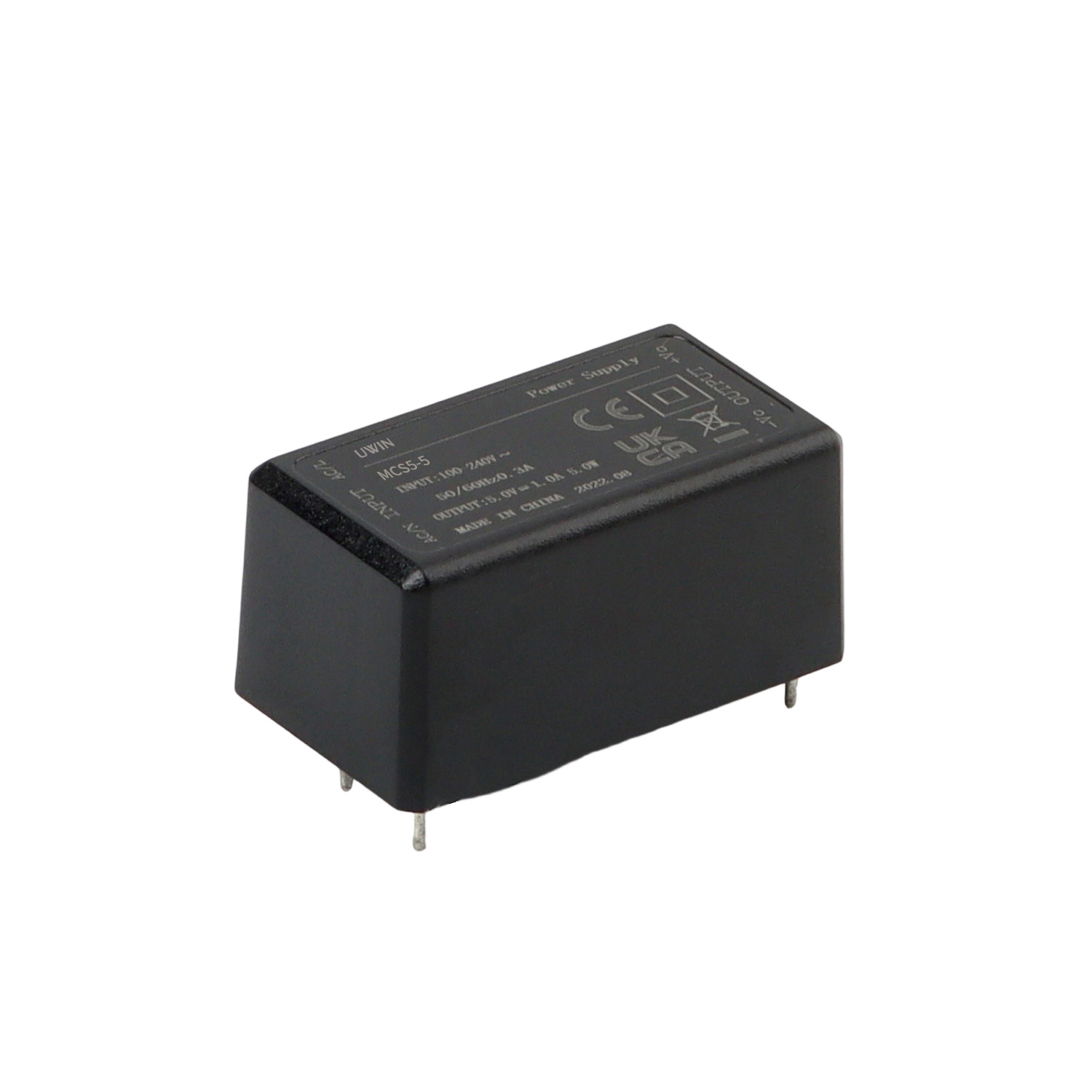

MCS5-5	5W	85-305VAC	1A	5VDC	3000VAC	CE	99X97X30mm	-
MCS5-12	5.04W	85-305VAC	0.42A	12VDC	3000VAC	CE	99X97X30mm	-
MCS5-15	4.95W	85-305VAC	0.33A	15VDC	3000VAC	CE	99X97X30mm	-
MCS5-24	5.52W	85-305VAC	0.23A	24VDC	3000VAC	CE	99X97X30mm	-
MCS10	10W	85-305VAC	0.42-2.5A	3.3-24VDC	3000VAC	CE	46.08x25.78x21.7mm	-
MCS10-3.3	8.25W	85-305VAC	2.5A	3.3VDC	3000VAC	CE	46.08x25.78x21.7mm	-
MCS10-5	10W	85-305VAC	2A	5VDC	3000VAC	CE	46.08x25.78x21.7mm	-
MCS10-12	10.2W	85-305VAC	0.85A	12VDC	3000VAC	CE	46.08x25.78x21.7mm	-
MCS10-15	9.9W	85-305VAC	0.66A	15VDC	3000VAC	CE	46.08x25.78x21.7mm	-
MCS10-24	10.08W	85-305VAC	0.42A	24VDC	3000VAC	CE	46.08x25.78x21.7mm	-
MCS15	15W	85-305VAC	0.63-3.5A	3.3-24VDC	3000VAC	CE	52.6x27.48x24.3mm	-
MCS15-3.3	11.55W	85-305VAC	3.5A	3.3VDC	3000VAC	CE	52.6x27.48x24.3mm	-
MCS15-5	15W	85-305VAC	3A	5VDC	3000VAC	CE	52.6x27.48x24.3mm	-
MCS15-12	15W	85-305VAC	1.25A	12VDC	3000VAC	CE	52.6x27.48x24.3mm	-
MCS15-15	15W	85-305VAC	1A	15VDC	3000VAC	CE	52.6x27.48x24.3mm	-
MCS15-24	15.12W	85-305VAC	0.63A	24VDC	3000VAC	CE	52.6x27.48x24.3mm	-
MCS20	20W	85-305VAC	0.9-4.5A	3.3-24VDC	3000VAC	CE	52.6x27.48x24.3mm	-
MCS20-3.3	14.85W	85-305VAC	4.5A	3.3V	3000VAC	CE	52.6x27.48x24.3mm	-
MCS20-5	20W	85-305VAC	4A	5V	3000VAC	CE	52.6x27.48x24.3mm	-
MCS20-12	21.6W	85-305VAC	1.8A	12V	3000VAC	CE	52.6x27.48x24.3mm	-
MCS20-15	21W	85-305VAC	1.4A	15V	3000VAC	CE	52.6x27.48x24.3mm	-
MCS20-24	21.6W	85-305VAC	0.9A	24V	3000VAC	CE	52.6x27.48x24.3mm	-
MCS30	30W	85-305VAC	0.625-6A	5-48VDC	3000VAC	CE	69.5x39x24mm	-
MCS30-5	30W	85-305VAC	6A	5VDC	3000VAC	CE	69.5x39x24mm	-

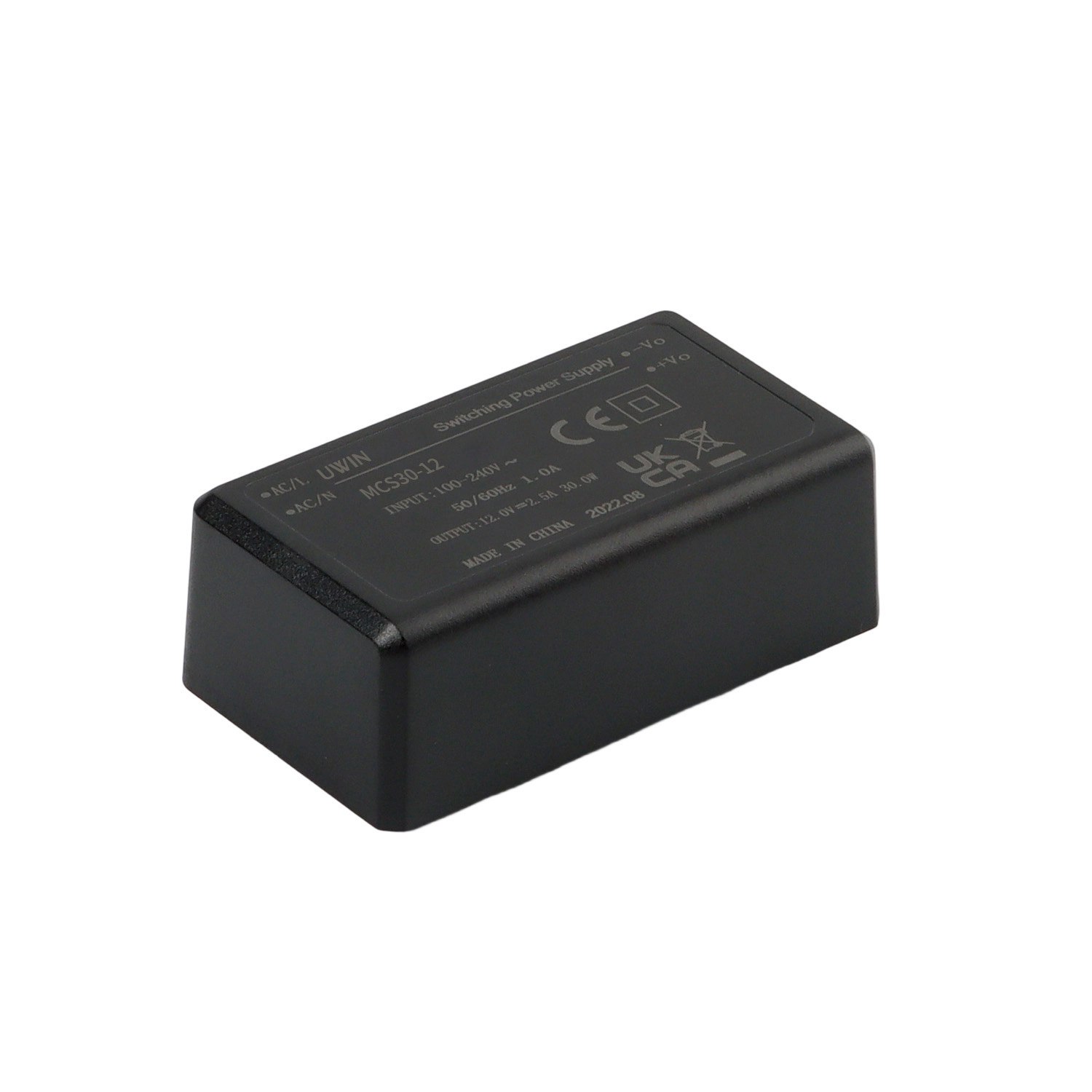

MCS30-12	30W	85-305VAC	5A	12VDC	3000VAC	CE	69.5x39x24mm	-
MCS30-15	30W	85-305VAC	2A	15VDC	3000VAC	CE	69.5x39x24mm	-
MCS30-24	30W	85-305VAC	2.5A	24VDC	3000VAC	CE	69.5x39x24mm	-
MCS30-48	30W	85-305VAC	0.625A	48VDC	3000VAC	CE	69.5x39x24mm	-
MCS45	45W	85-305VAC	0.94-8A	5-48VDC	3000VAC	CE	87x52x3mm	-
MCS45-5	40W	85-305VAC	8A	5VDC	3000VAC	CE	87x52x3mm	-
MCS45-12	45.6W	85-305VAC	3.8A	12VDC	3000VAC	CE	87x52x3mm	-
MCS45-15	45W	85-305VAC	3A	15VDC	3000VAC	CE	87x52x3mm	-
MCS45-24	45.6W	85-305VAC	1.9A	24VDC	3000VAC	CE	87x52x3mm	-
MCS45-48	45.12W	85-305VAC	0.94A	48VDC	3000VAC	CE	87x52x3mm	-
MCS60	60W	85-305VAC	1.25-10A	5-48VDC	3000VAC	CE	87x52x3mm	-
MCS60-5	50W	85-305VAC	10A	5VDC	3000VAC	CE	87x52x3mm	-
MCS60-12	60W	85-305VAC	5A	12VDC	3000VAC	CE	87x52x3mm	-
MCS60-15	60W	85-305VAC	4A	15VDC	3000VAC	CE	87x52x3mm	-

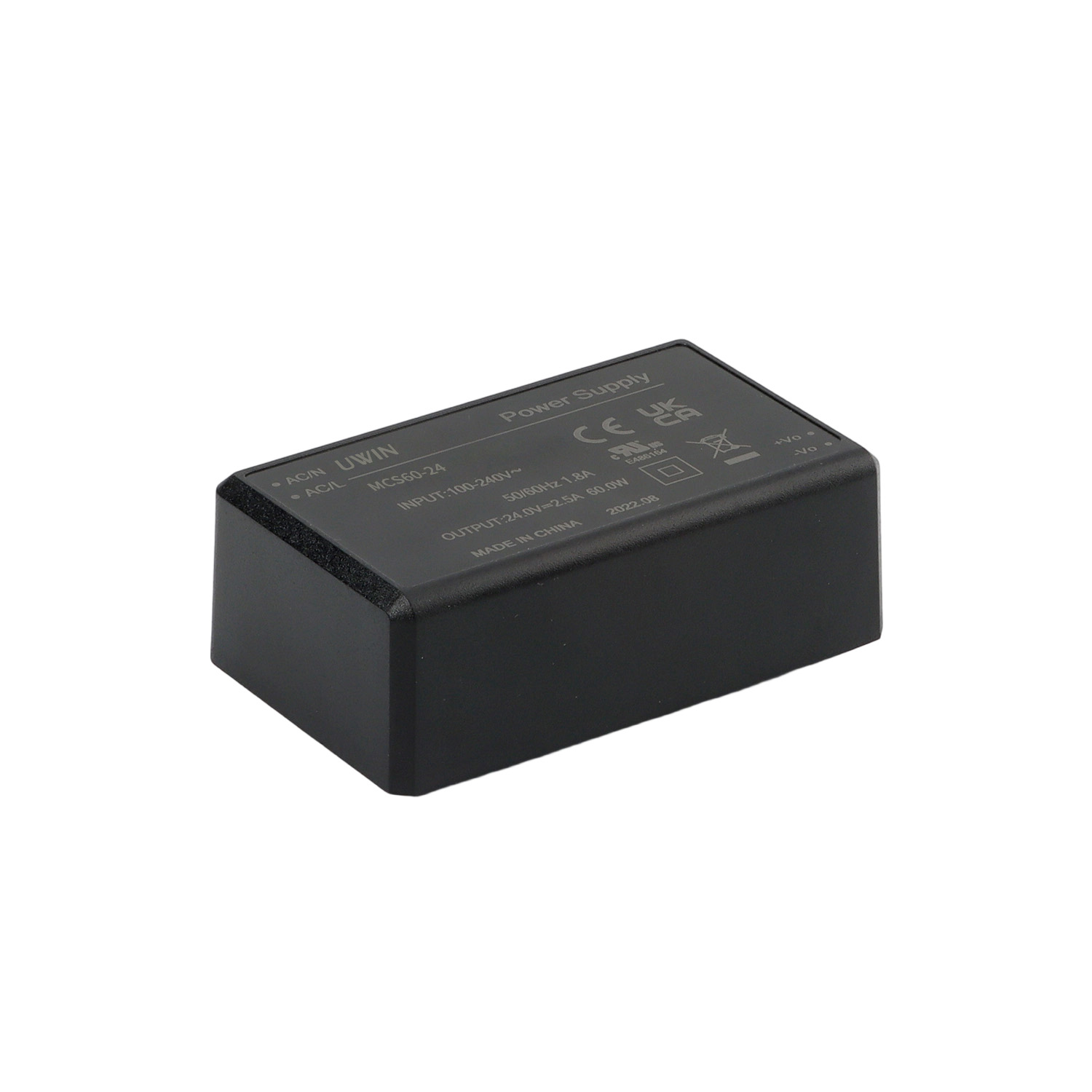

MCS60-24	60W	85-305VAC	2.5A	24VDC	3000VAC	CE	87x52x3mm	-
MCS60-48	60W	85-305VAC	1.25A	48VDC	3000VAC	CE	87x52x3mm	-
MCS90	90W	85-305VAC	1.88-6.7A	12-48VDC	3000VAC	CE	87x52x3mm	-
MCS90-12	80.4W	85-305VAC	6.7A	12VDC	3000VAC	CE	87x52x3mm	-
MCS90-15	85.05W	85-305VAC	5.67A	15VDC	3000VAC	CE	87x52x3mm	-

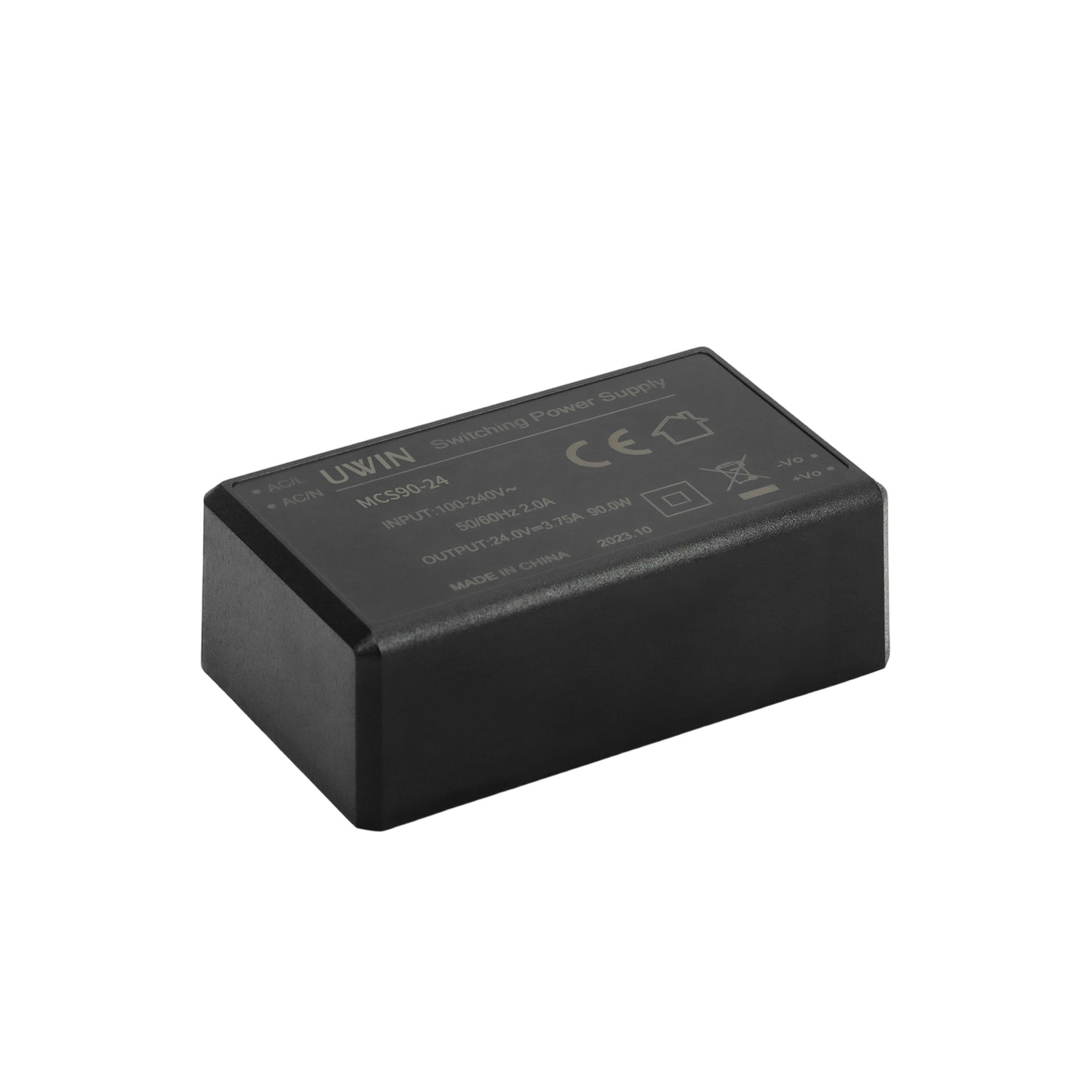

MCS90-24	90W	85-305VAC	3.75A	24VDC	3000VAC	CE	87x52x3mm	-
MCS90-48	90.2W	85-305VAC	1.88A	48VDC	3000VAC	CE	87x52x3mm	-

* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
