DRS Series (75-960W )

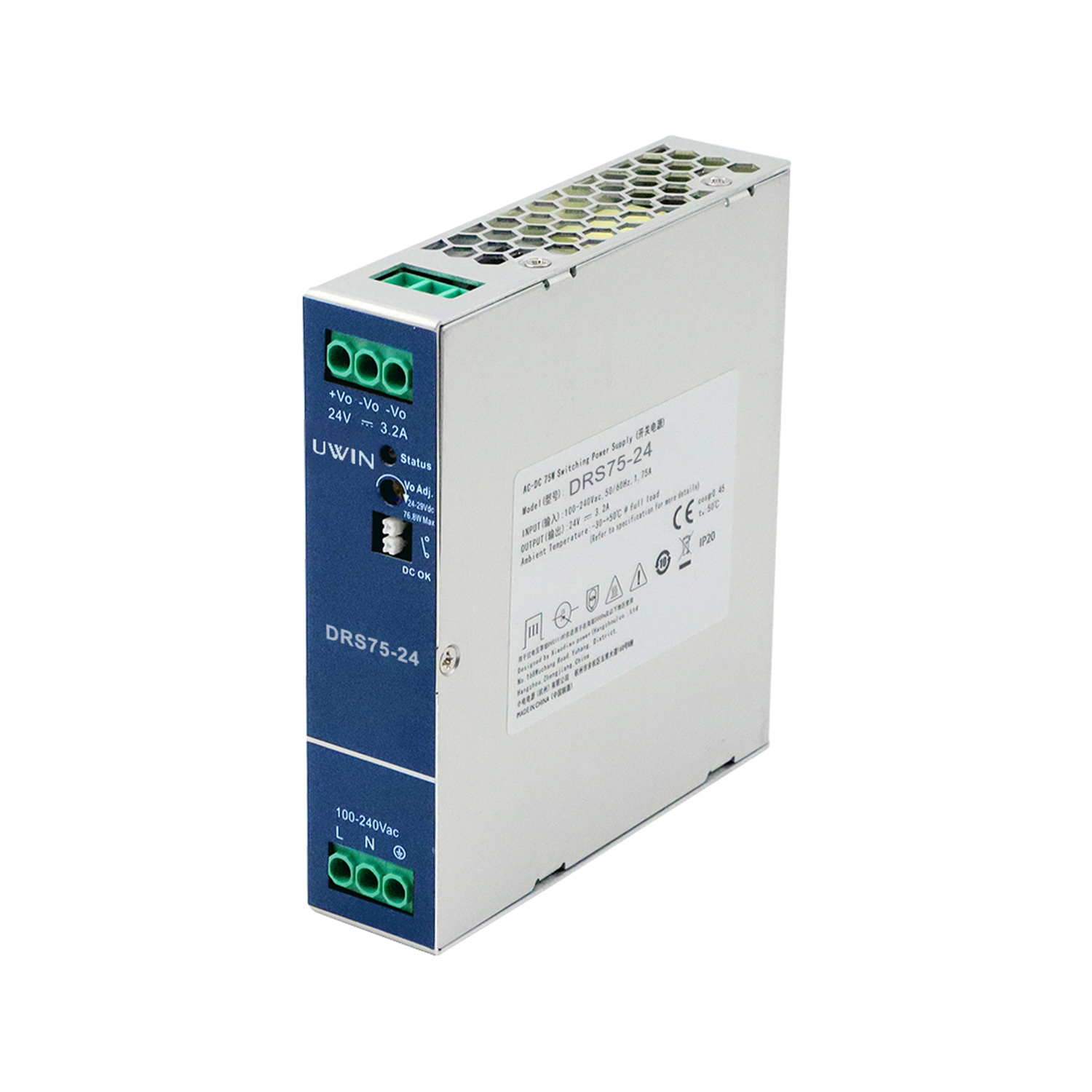

DRS75
DRS120
DRS240
DRS480
| Series | Rated power (W) | Input voltage (V) | Output current (A) | Output voltage (V) | Isolation voltage (V) | Certificate | Dimension | Spec |
|---|---|---|---|---|---|---|---|---|
|
DRS75
|
75W | 85-264VAC | 1.6-6.3A | 12-48VDC | 4000VAC | CE | 116X30X125.2mm | - |
|
DRS120
|
120W | 85-264AVC | 2.5-10A | 12-48VDC | 4000VAC | CE | 116X30X125.2mm | - |
|
DRS240
|
240W | 85-264AVC | 5-20A | 12-48VDC | 4000VAC | CE | 116X40X125.5mm | - |
|
DRS480
|
480W | 85-264VAC | 10-30A | 12-48VDC | 4000VAC | CE | 125X48X125.2mm | - |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
