Din Rail Power Supplies

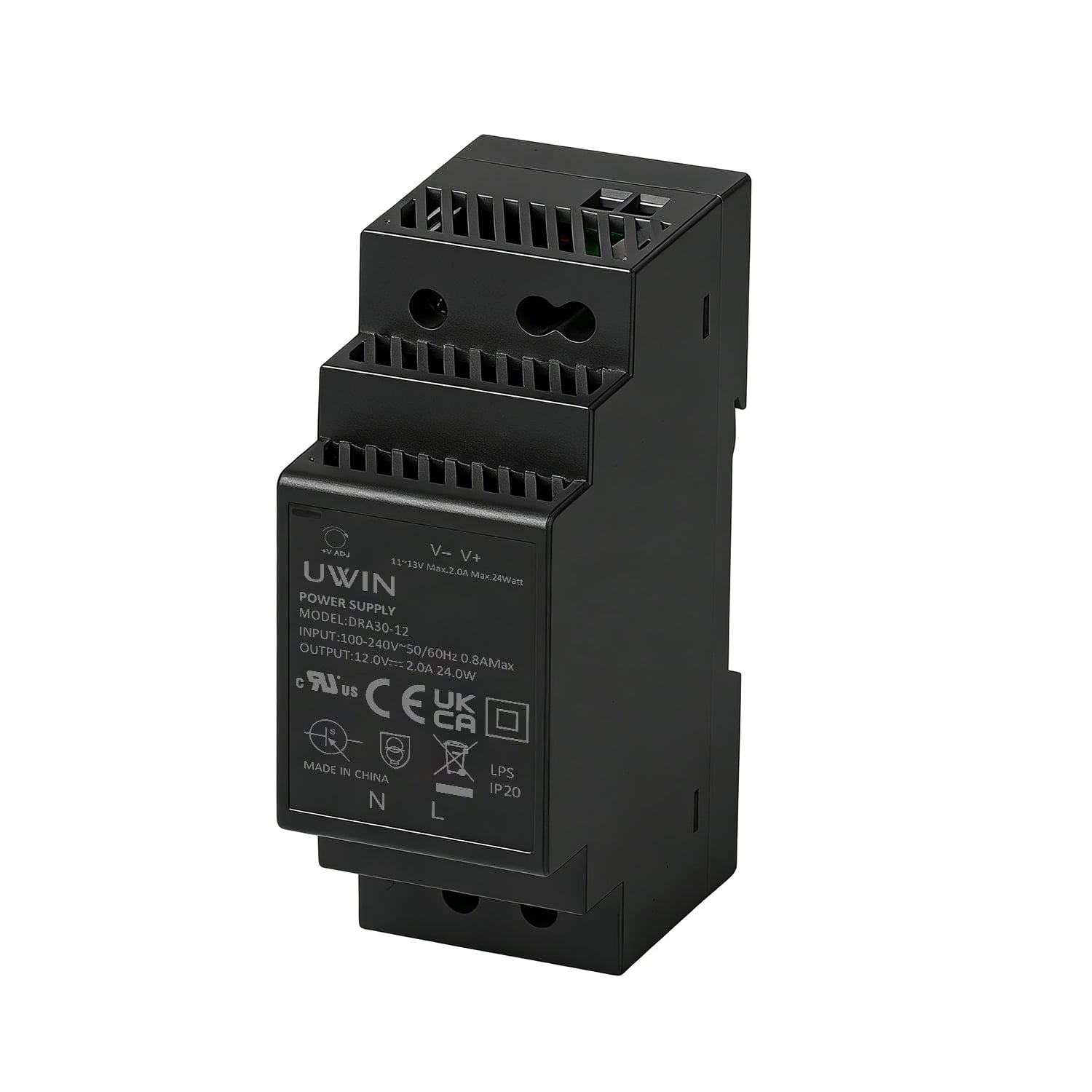

DRA Series (15-150W)

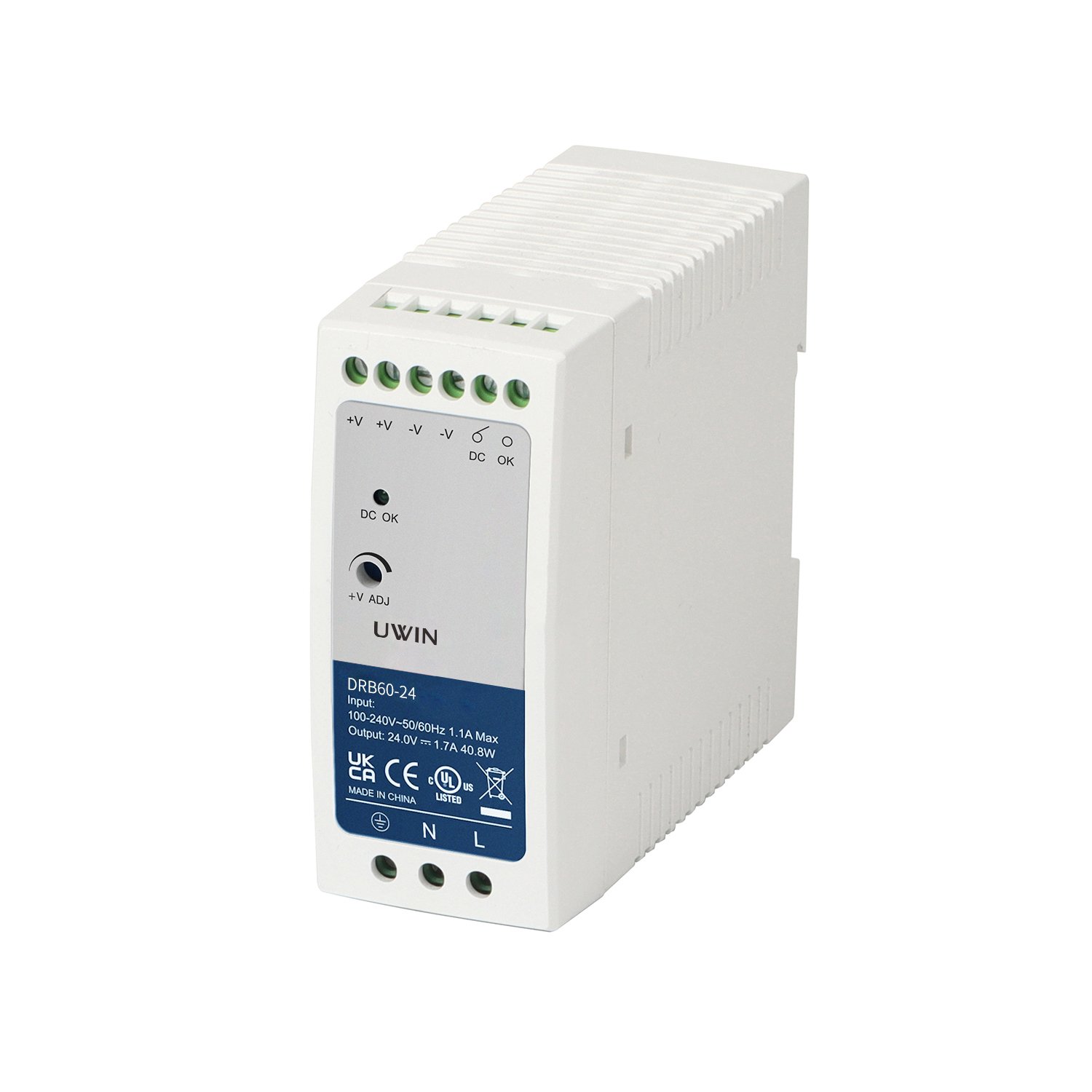

DRB Series (10-96W)

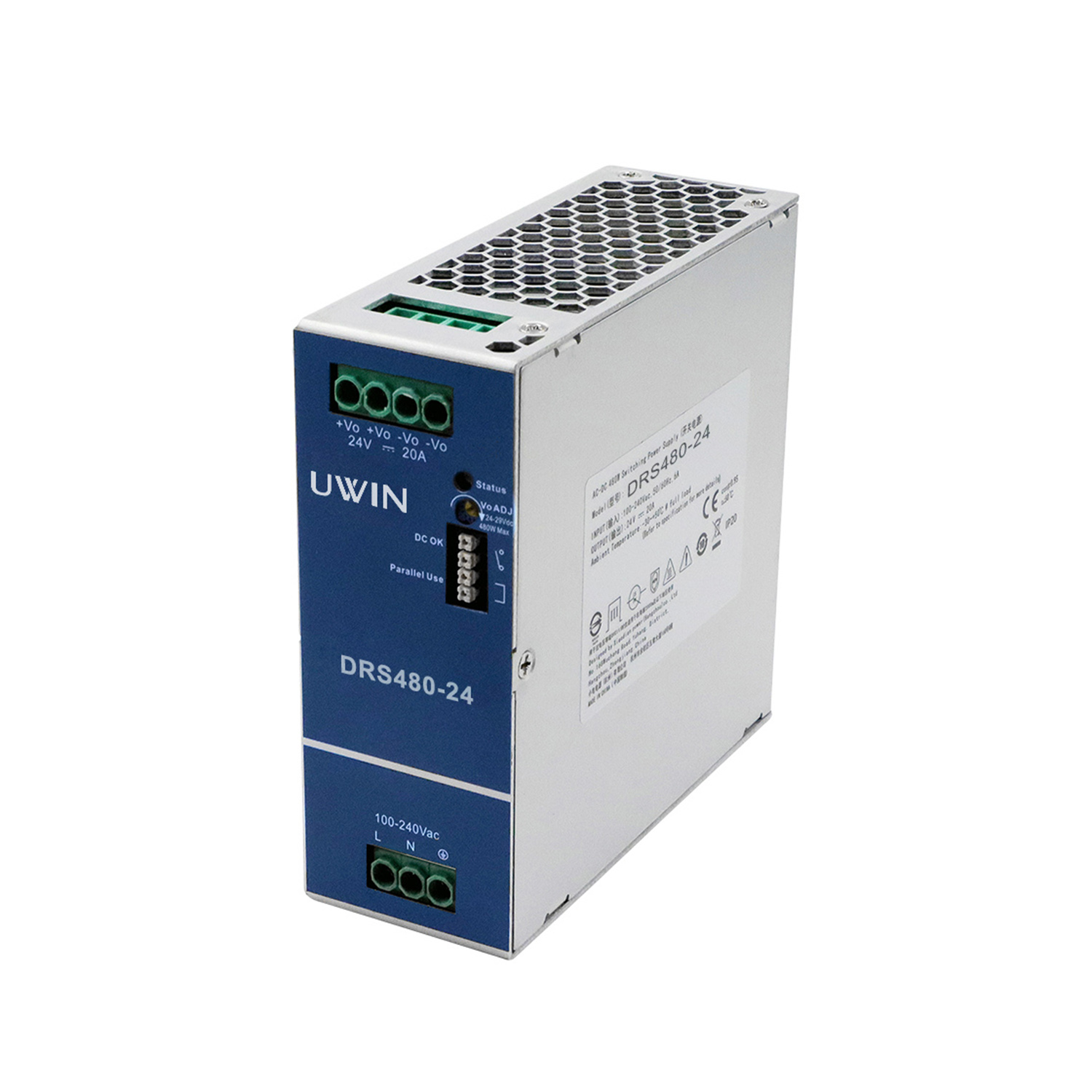

DRS Series (75-960W )

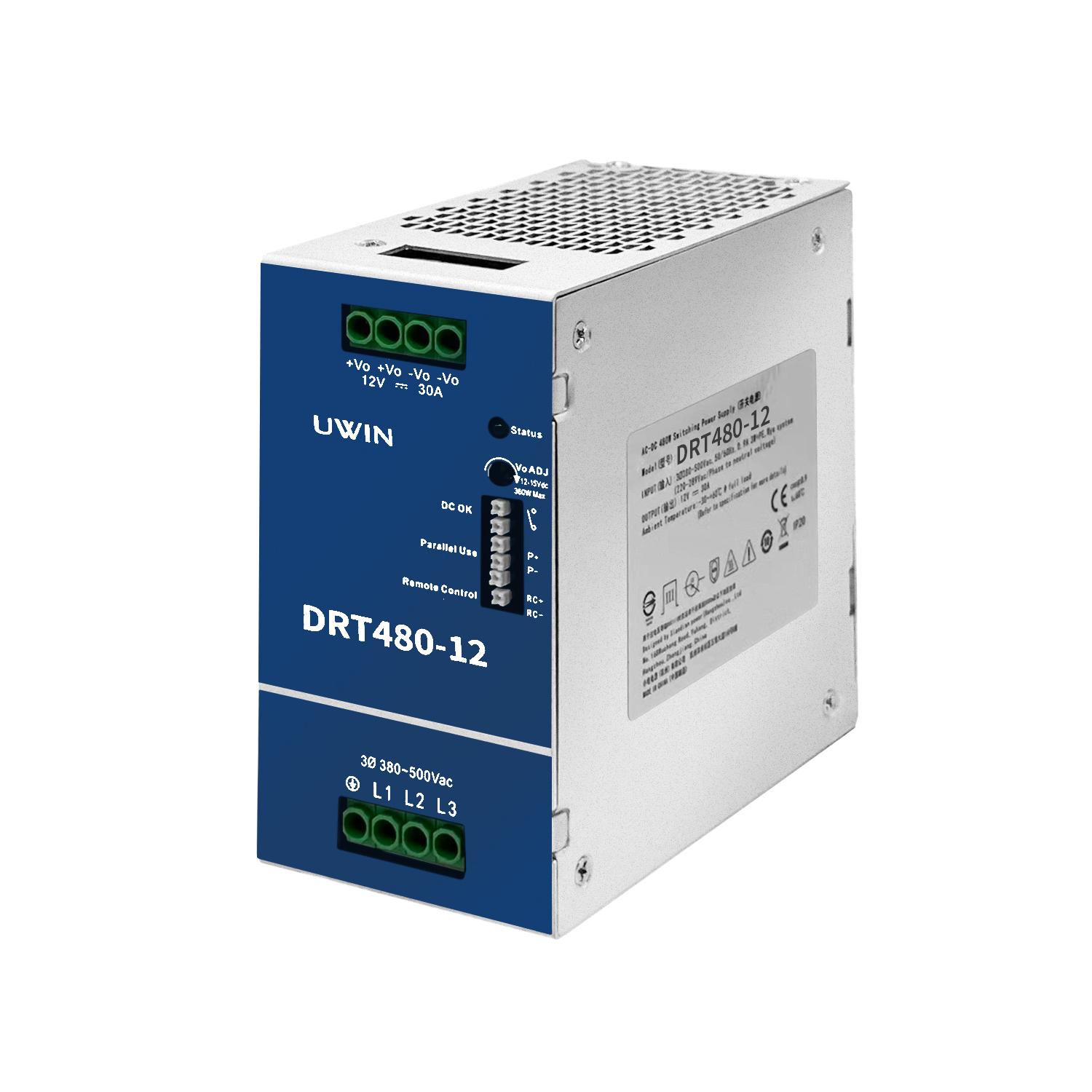

DRT Series (240-960W)

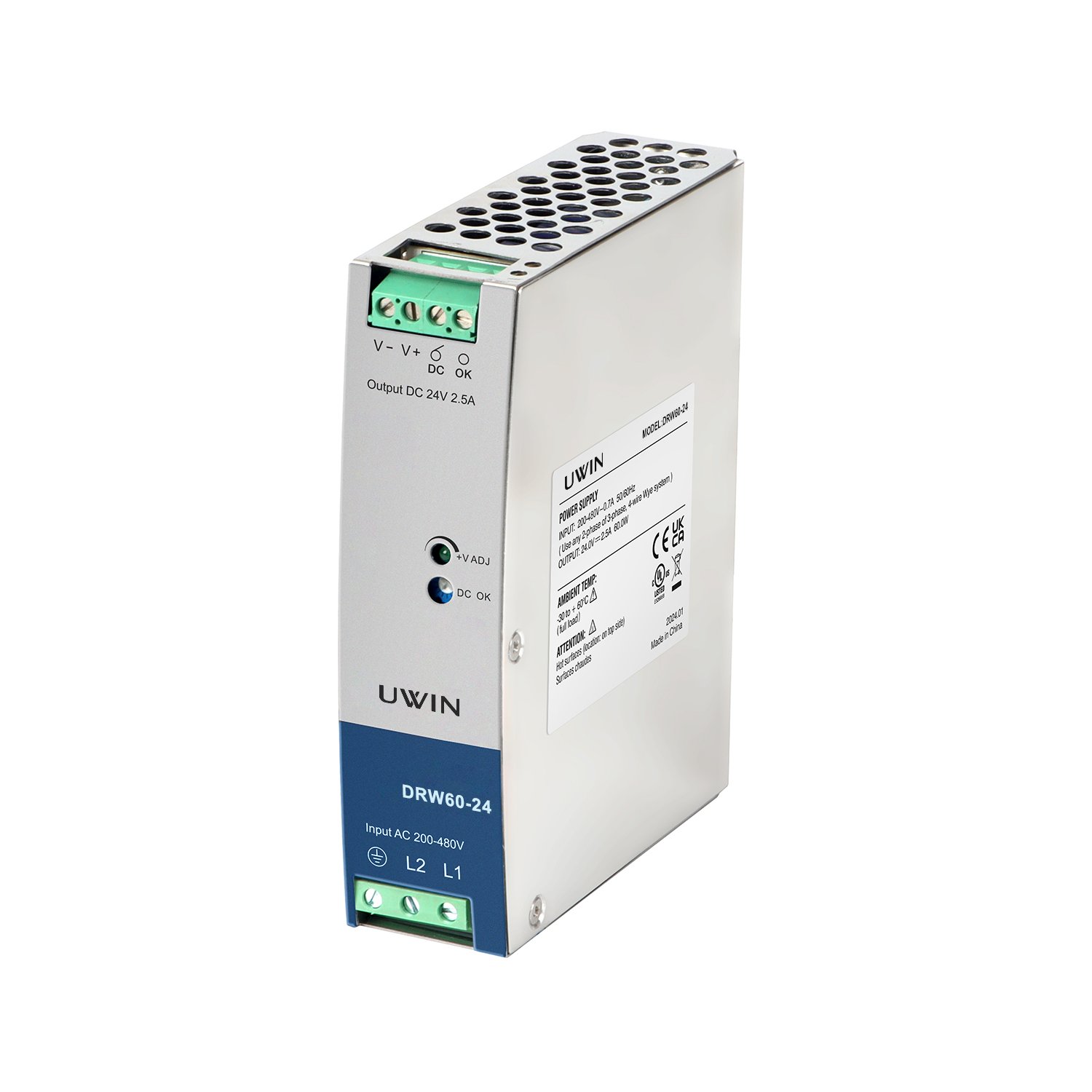

DRW Series (60-480W)

From 10W-960W, ultra slim width, high efficiency up to 96% and no load dissipation <1W/3.6W, can be installed on DIN Rail TS-35/7.5 or 15 . Suitable for building automation, industrial control system, semiconductor fabrication equipment, factory automation and electro-mechanical equipment .

Series	Rated power (W)	Input voltage (V)	Output current (A)	Output voltage (V)	Isolation voltage (V)	Certificate	Dimension	Spec
DRB10	10W	85-264VAC	0.42-2A	5-24VDC	3000VAC	CE	100x22.5x90mm	-
DRB10-5	10W	85-264VAC	2A	5VDC	3000VAC	CE	100x22.5x90mm	-
DRB10-12	10W	85-264VAC	0.84A	12VDC	3000VAC	CE	100x22.5x90mm	-
DRB10-15	10W	85-264VAC	0.67A	15VDC	3000VAC	CE	100x22.5x90mm	-
DRB10-24	10W	85-264VAC	0.42A	24VDC	3000VAC	CE	100x22.5x90mm	-
DRA15	15W	100-240VAC	0.3-2.4A	5-48VDC	3000VAC	UL,CE	18x90x58mm
DRA15-5	15W	100-240VAC	2.4A	5VDC	3000VAC	UL,CE	18x90x58mm
DRA15-12	15W	100-240VAC	1.25A	12VDC	3000VAC	UL,CE	18x90x58mm
DRA15-15	15W	100-240VAC	1.0A	15VDC	3000VAC	UL,CE	18x90x58mm
DRA15-24	15W	100-240VAC	0.63A	24VDC	3000VAC	UL,CE	18x90x58mm
DRA15-48	15W	100-240VAC	0.31A	48VDC	3000VAC	UL,CE	18x90x58mm
DRB20	20W	85-264VAC	1-3A	5-24VDC	3000VAC	CE	100x22.5x90mm	-
DRB20-5	15W	85-264VAC	3A	5VDC	3000VAC	CE	100x22.5x90mm	-
DRB20-12	20W	85-264VAC	1.67A	12VDC	3000VAC	CE	100x22.5x90mm	-
DRB20-15	20W	85-264VAC	1.34A	15VDC	3000VAC	CE	100x22.5x90mm	-
DRB20-24	24W	85-264VAC	1A	24VDC	3000VAC	CE	100x22.5x90mm	-
DRA30	30W	100-240VAC	0.63-3A	5-48VDC	3000VAC	UL,CE	35x90x58mm
DRA30-5	15W	100-240VAC	3A	5VDC	3000VAC	UL,CE	35x90x58mm	-
DRA30-12	24W	100-240VAC	2A	12VDC	3000VAC	UL,CE	35x90x58mm	-
DRA30-15	30W	100-240VAC	2A	15VDC	3000VAC	UL,CE	35x90x58mm	-
DRA30-24	36W	100-240VAC	1.5A	24VDC	3000VAC	UL,CE	35x90x58mm	-
DRA30-48	36W	100-240VAC	0.75A	48VDC	3000VAC	UL,CE	35x90x58mm	-
DRB40	40W	85-264VAC	0.83-6A	5-48VDC	3000VAC	CE	100x40x90mm	-
DRB40-5	30W	85-264VAC	6A	5VDC	3000VAC	CE	100x40x90mm	-
DRB40-12	40W	85-264VAC	3.33A	12VDC	3000VAC	CE	100x40x90mm	-
DRB40-24	40.8W	85-264VAC	1.7A	24VDC	3000VAC	CE	100x40x90mm	-
DRB40-48	39.8W	85-264VAC	0.83A	48VDC	3000VAC	CE	100x40x90mm	-
DRA60	60W	100-240VAC	1.25-4.5A	5-48VDC	3000VAC	UL,CE	52X90X58mm
DRA60-5	22.5W	100-240VAC	4.5A	5VDC	3000VAC	UL,CE	52X90X58mm
DRA60-12	54W	100-240VAC	4.5A	12VDC	3000VAC	UL,CE	52X90X58mm
DRA60-15	60W	100-240VAC	4A	15VDC	3000VAC	UL,CE	52X90X58mm
DRA60-24	60W	100-240VAC	2.5A	24VDC	3000VAC	UL,CE	52X90X58mm
DRA60-48	60W	100-240VAC	1.25A	48VDC	3000VAC	UL,CE	52X90X58mm
DRB60	60W	85-264VAC	1.25-10A	5-48VDC	3000VAC	CE	100x40x90mm	-
DRB60-5	50W	85-264VAC	10A	5VDC	3000VAC	CE	100x40x90mm	-
DRB60-12	60W	85-264VAC	5A	12VDC	3000VAC	CE	100x40x90mm	-
DRB60-24	60W	85-264VAC	2.5A	24VDC	3000VAC	CE	100x40x90mm	-
DRB60-48	60W	85-264VAC	1.25A	48VDC	3000VAC	CE	100x40x90mm	-
DRW60	60W	200-480VAC	1.25-10A	5-48VDC	3000VAC	CE	32X100.5X125mm	-
DRW60-5	60W	200-480VAC	10A	5VDC	3000VAC	CE	32X100.5X125mm	-
DRW60-12	60W	200-480VAC	5A	12VDC	3000VAC	CE	32X100.5X125mm	-
DRW60-24	60W	200-480VAC	2.5A	24VDC	3000VAC	CE	32X100.5X125mm	-
DRW60-48	60W	200-480VAC	1.25A	48VDC	3000VAC	CE	32X100.5X125mm	-
DRS75	75W	85-264VAC	1.6-6.3A	12-48VDC	4000VAC	CE	116X30X125.2mm	-
DRS75-12	75.6W	85-264AVC	6.3A	12VDC	4000VAC	CE	116X30X125.2mm	-
DRS75-24	76.8W	85-264AVC	3.2A	24VDC	4000VAC	CE	116X30X125.2mm	-
DRS75-36	75.6W	85-264AVC	2.1A	36VDC	4000VAC	CE	116X30X125.2mm	-
DRS75-48	76.8W	85-264AVC	1.6A	48VDC	4000VAC	CE	116X30X125.2mm	-
DRA100	92W	100-240VAC	1.92-7.1A	12-48V	3000VAC	UL,CE	90x70.2x58.4mm	-
DRA100-12	85.2W	100-240VAC	7.1A	12VDC	3000VAC	UL,CE	90x70.2x58.4mm	-
DRA100-15	92W	100-240VAC	6.13A	15VDC	3000VAC	UL,CE	90x70.2x58.4mm	-
DRA100-24	92W	100-240VAC	3.83A	24VDC	3000VAC	UL,CE	90x70.2x58.4mm	-
DRA100-48	92.2W	100-240VAC	1.92A	48VDC	3000VAC	UL,CE	90x70.2x58.4mm	-
DRB100	100W	85-264VAC	2-7.5A	12-48VDC	3000VAC	CE	100x55x90mm	-
DRB100-12	90W	85-264VAC	7.5A	12VDC	3000VAC	CE	100x55x90mm	-
DRB100-24	96W	85-264VAC	4A	24VDC	3000VAC	CE	100x55x90mm	-
DRB100-48	96W	85-264VAC	2A	48VDC	3000VAC	CE	100x55x90mm	-
DRS120	120W	85-264AVC	2.5-10A	12-48VDC	4000VAC	CE	116X30X125.2mm	-
DRS120-12	120W	85-264AVC	10A	12VDC	4000VAC	CE	116X30X125.2mm	-
DRS120-24	120W	85-264AVC	5A	24VDC	4000VAC	CE	116X30X125.2mm	-
DRS120-36	120W	85-264AVC	3.33A	36VDC	4000VAC	CE	116X30X125.2mm	-
DRS120-48	120W	85-264AVC	2.5A	48VDC	4000VAC	CE	116X30X125.2mm	-
DRW120	120W	200-500VAC	2.5-10A	12-48VDC	3000AVC	CE	113X40X125mm	-
DRW120-12	120W	200-500VAC	10A	12VDC	3000AVC	CE	113X40X125mm	-
DRW120-24	120W	200-500VAC	5A	24VDC	3000AVC	CE	113X40X125mm	-
DRW120-48	120W	200-500VAC	2.5A	48VDC	3000AVC	CE	113X40X125mm	-
DRA150	150W	100-240VAC	2.72-11.3A	12-48VDC	3000VAC	UL,CE	105X90X58.4mm	-
DRA150-12	135.6W	100-240VAC	11.3/10.2	12VDC	3000VAC	UL,CE	105X90X58.4mm	-
DRA150-15	142.5W	100-240VAC	9.5/8.55A	15VDC	3000VAC	UL,CE	105X90X58.4	-
DRA150-24	150W	100-240VAC	6.25/5.3A	24VDC	3000VAC	UL,CE	105X90X58.4	-
DRA150-48	153.6W	100-240VAC	3.12/2.72A	48VDC	3000VAC	UL,CE	105X90X58.4	-
DRS240	240W	85-264AVC	5-20A	12-48VDC	4000VAC	CE	116X40X125.5mm	-
DRS240-12	240W	85-264AVC	20A	12VDC	4000VAC	CE	116X40X125.5mm	-
DRS240-24	240W	85-264AVC	10A	24VDC	4000VAC	CE	116X40X125.5mm	-
DRS240-36	240W	85-264AVC	6.66A	36VDC	4000VAC	CE	116X40X125.5mm	-
DRS240-48	240W	85-264AVC	5A	48VDC	4000VAC	CE	116X40X125.5mm	-
DRT240	240W	320-600VAC	5-15A	12-48VDC	4500VAC	CE	125X48X125.2mm	-
DRT240-12	180W	320-600VAC	15A	12VDC	4500VAC	CE	125X48X125.2mm	-
DRT240-24	240W	320-600VAC	10A	24VDC	4500VAC	CE	125X48X125.2mm	-
DRT240-36	239.8W	320-600VAC	6.66A	36VDC	4500VAC	CE	125X48X125.2mm	-
DRT240-48	240W	320-600VAC	5A	48VDCX	4500VAC	CE	125X48X125.2mm	-
DRW240	240W	200-500VAC	5-10A	24/48VDC	3000VAC	CE	113.5X63X125mm	-
DRW240-24	240W	200-500VAC	10A	24VDC	3000VAC	CE	113.5X63X125mm	-
DRW240-48	240W	200-500VAC	5A	48VDC	3000VAC	CE	113.5X63X125mm	-
DRS480	480W	85-264VAC	10-30A	12-48VDC	4000VAC	CE	125X48X125.2mm	-
DRS480-12	480W	85-264VAC	30A	12VDC	4000VAC	CE	125X48X125.2mm	-
DRS480-24	480W	85-264VAC	20A	24VDC	4000VAC	CE	125X48X125.2mm	-
DRS480-36	478.8W	85-264VAC	13.3A	36VDC	4000VAC	CE	125X48X125.2mm	-
DRS480-48	480W	85-264VAC	10A	48VDC	4000VAC	CE	125X48X125.2mm	-
DRT480	480W	320-600VAC	10-30A	12-48VDC	4500VAC	CE	125x63x125.2mm	-
DRT480-12	360W	320-600VAC	30A	12VDC	4500VAC	CE	125x63x125.2mm	-
DRT480-24	480W	320-600VAC	20A	24VDC	4500VAC	CE	125x63x125.2mm	-
DRT480-36	478.8W	320-600VAC	13.3A	36VDC	4500VAC	CE	125x63x125.2mm	-
DRT480-48	480W	320-600VAC	10A	48VDC	4500VAC	CE	125x63x125.2mm	-
DRW480	480W	200-500VAC	10/20A	24/48VDC	3000VAC	CE	85.5X129X125mm	-
DRW480-24	480W	200-500VAC	20A	24VDC	3000VAC	CE	85.5X129X125mm	-
DRW480-48	480W	200-500VAC	10A	48VDC	3000VAC	CE	85.5X129X125mm	-
DRT960	960W	320-600VAC	20-40A	24-48VDC	4500VAC	CE	132x96x125.2mm	-
DRT960-24	960W	320-600VAC	40A	12VDC	4500VAC	CE	132x96x125.2mm	-
DRT960-36	959.7W	320-600VAC	26.66A	36VDC	4500VAC	CE	132x96x125.2mm	-
DRT960-48	960W	320-600VAC	20A	48VDC	4500VAC	CE	132x96x125.2mm	-

* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
